Length: 90 ft
Additional Specs, Equipment and Information: |
WATER SYSTEM |
|
| Mains Pressure Water System for 12 Outlets 50Lmin rating | ||
| Engines | Headhunter High Pressure Toilet Pump System (US Navy Specification) | |
| Engine Brand: Twin Diesel | Fuel Transfer System between Main Tanks (2 x 3900L) and three belly tanks of 2500L total | |
| Engine Model: Detroit DD12VF | Oil Management System for engines with waste Tank | |
| Heavy Duty electrical Bilge Pump with complex manifold for all compartments | ||
| Fire Protection System to Engine Room Novec 1230 System (upgraded 2009) | ||
| Description | ||

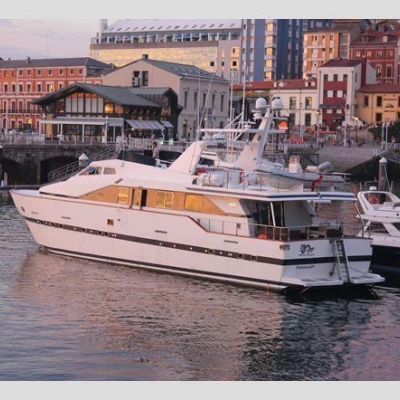

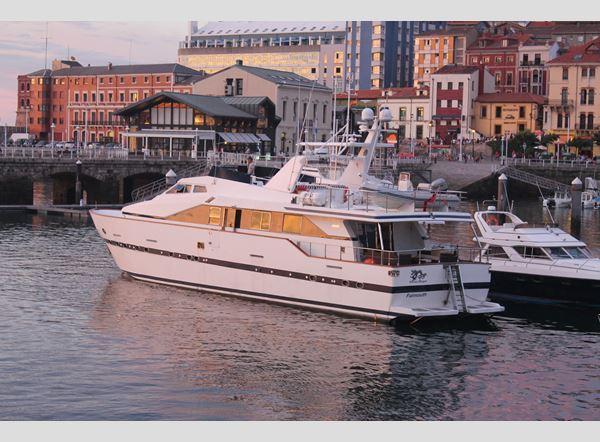

| AZIMUT 90 | TANKAGE | |
| Built by Azimut, Italy in 1990. | FUEL 10300 litres | |
| Commissioned in 1991 | WATER | |
| HOLDING TANKS yes | ||
| A luxury yacht designed, built and maintained to the highest standards, constructed in 1990, commissioned in 1991 and refurbished in 2003 and 2009. In 2012 a substantial refit was carried out. | ||
| GROUND TACKLE | ||
| To port and starboard are two CapstanAnchor handling windlasses with electrical remote control. | ||
| LOA 28.00m | ||
| BEAM 6.80m | Forward is a flush teak hatch above the chain locker with 100M of chain for each anchor and an anchor wash systems. | |
| DRAFT 2.80m | ||
| Inventory | Accommodation | |
| NAVIGATION EQUIPMENT | SLEEPS TWELVE GUESTS IN SIX CABINS PLUS FOUR CREW IN TWO CABINS | |
| Furuno 48 mile RadarChart Plotter combined with Cmax Mapping Cartridge for Mediterranean and coastal waters to England. (New 2009) | Accommodation for twelve guests and four crew, consisting centrally of two twin cabins and two double cabins on the lower deck all with shower, washbasin, electric flush toilet, marble floorsfittings. | |
| Garmin GPS Map System (colour) (New 2008) | ||
| Robertson AP45 Autopilot with remote to flybridge | Forward are two twin crew cabins with electric flush shower. Forward of the crew cabins is a laundry with Washer and condensing Dryer plus separate access from the crew quarters to the foredeck. | |
| Simrad RD68 VHF DSC Radio (With emergency battery supply) | ||
| Raymarine Log | Aft is the full width owners double cabin with extensive hanging space, walk-in closet and en suite with bath, shower over, double hand basins and bidet all set on marble floors. | |
| Clipper Digital Depth | ||

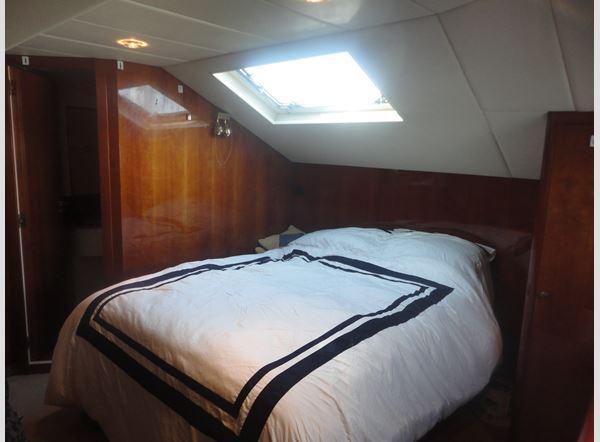

| 2 x Icom hand-held VHF Radios | Forward at Main Deck level is s substantial double cabin with en suite. All cabins have flat-screen TV with DVD players. | |
| 1 x Skanti 400W HF-SSB Transmitter Receiver (Not used) | ||
| 1 x Plastimo Compass and 1 x Anschutz Gyro Compass | All finished in high gloss cherry wood to lower areas and cream lacquer to upper surfaces | |

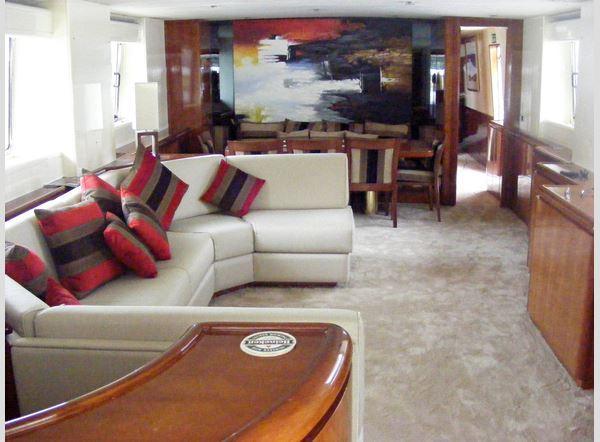

| ELECTRONICS | 8M long x 4M wide with substantial separated dining area having a table seating eightten persons forward and a contoured seating area to Port with fitted and loose cushions. Opposite is a Media Centre and DVDCD music storage. Large glazed windows provide a very light and pleasant area. | |
| 1 x Port and Starboard Trim Tab Controls with Indicators | ||
| 1 x Analog Fuel Gauge | Forward from the dining area is access to the forward accommodation stairs, the day toilet, wheelhouse and double cabin. | |
| 1 x Analog Water Tank Gauge | ||

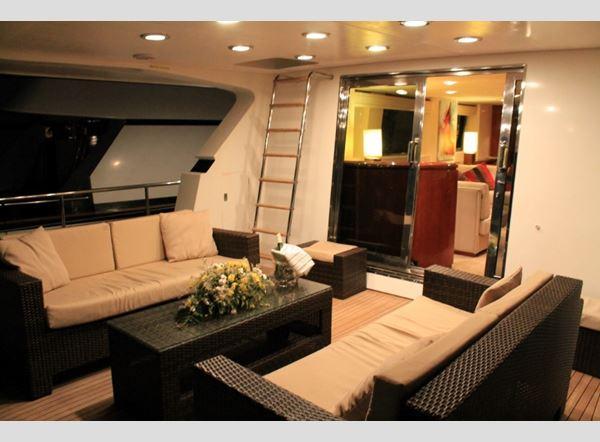

| 1 x Searchlight Controls (with remote control on Flybridge) | Accessed from the aft deck through stainless steel glazed doors the saloon has a curved bar area to port with marble top and storage under together with a fridge. | |
| 1 x Helmsman's seat with adjacent full-size chart table | ||
| 1 x double raised banquette for crew or guest use with table forward | To starboard is the staircase to the owners aft cabin. | |
| 6 x Digital Power Displays (Volts & Amps) for Generators and Shore Power status. | The Azimut features a raised Pilot House being three steps up from the Main Deck and enjoying superb views forward as well as to Port and Starboard. The Wheelhouse has comprehensive engine monitoring systems and individual controls for throttles and gear selection. | |
| 2 x Remote start for engine room generators with online switching selection | ||
| Bilge Pump control panel and mimic indicator | ||
| Grey Water Pump manual switch controls | Galley equipped with | |
| Navigation Light switching | 2 x Freezer Compartments 750L, stainless steel commercial units | |
| Emergency Lighting and Fire Pump controls | 2 x Fridge Compartments 750L, stainless steel commercial units | |
| Ocean Safety 20 Zone FireSmoke Monitor Systems with Sirens and independent battery supply | 4 ring hoboven stainless steel commercial unit with extractor over | |
| Dishwasher | ||
| EXTRA INVENTORY | Double bowl stainless steel sink with storage under | |
| Aft is the 1000kg deck crane for launch and recovery of the 4.8m Tender. Hydraulic powered with pendant controls for updown, raiselower arm, rotate leftright | Extensive storage cupboards below and above work surfaces | |
| Hinged table for additional work space | ||
| 4.8M Explorer RIB with centre console, seating and rated for 8 persons. Fitted with 60HP Mariner Engine. Both serviced 2012 and with equipment for watersports; wakeboarding, skiing, donut, diving. | Granite work surfaces | |
| Port and Starboard are two RFD 16 Man Canister Liferafts and to Port is a further 8 man Canister Liferaft all with hydrostatic releases. (5 Year service in May 2012) | Machinery | |
| TWIN DETROIT DIESEL DD12VF DIESEL ENGINES | ||
| Hydraulic extendingfolding passarelle for stern access or to bathing platform | Engine Controls Hynautic at two stations with RPM synchronisation | |
| Starboard side forward is a substantial locker with door containing 16 survival suits, two inflatable sailing dinghies, a 2M donut, life jackets and emergency equipment, including an engine-driven auxiliary fire pump. | Hydraulic Power Steering at two stations plus emergency manual steering | |
| Hydraulic Trim Tabs with electronic control at two stations | ||
| Bronze four bladed propellers with P Brackets and Cutlass Bearings on stainless steel shafts | ||
| ELECTRICS | ||
| Generators: 2 x GM 37KW (rebuilt 2006) | ||
| 240V Shore Power System with 110v-240V Transformer for USA | ||
| Frigit Reverse Cycle Air conditioning with eight independent air handlers | ||
| 4 x 12v 225AH Gel Batteries for Port and Starboard Engines (New 2012) | ||
| 4 x 12v 360AH Service Batteries for domestic supply and lighting (New 2012) | ||
| 4 x 12v 225AH Batteries for Port and Starboard Generators (New 2012) | ||
| 240v 24v AC Transformer for domestic lighting (QH downlighters) | ||
| Victron 80A Service Battery Charger | ||
| Victron 25A Emergency Radio Charger | ||
| Victron 25A Fire Control System Charger | ||
| Victron 1KW Static Inverter (Standby 240v Power)(Not connected but functional) | ||
| 240v24v AC and 24v DC Control Panel and remote operation from Wheelhouse Panel |
